Brook PS4 / PS3 / PC Fighting Board with Audio

Model:

US$89.99
Quantity : 1

All countries

Product Description

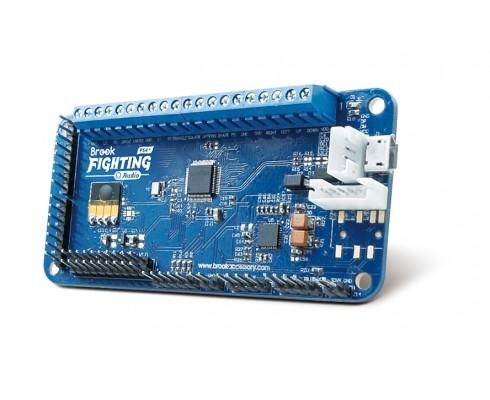

Brook PS4 / PS3 / PC Fighting Board with Audio

Brook continues it's Gaming Series PCB, Universal Fighting Board follow up with the PS3 / PS4 Fighting Board.

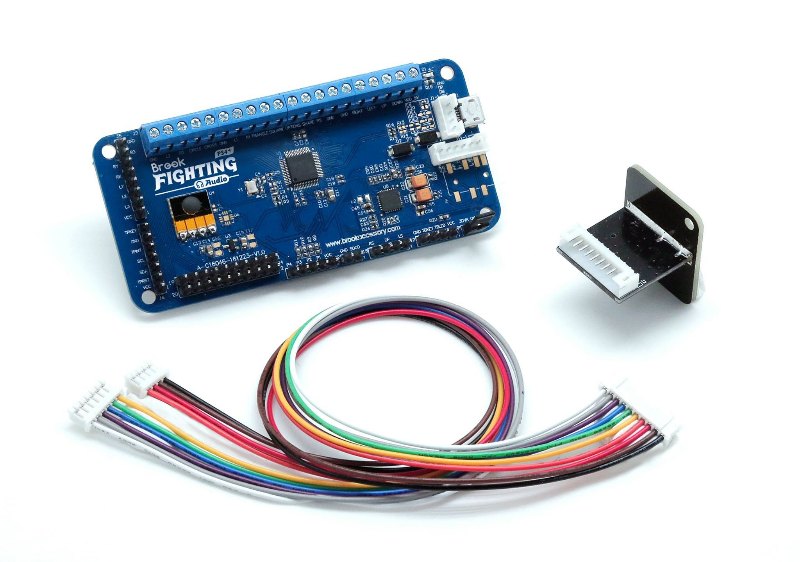

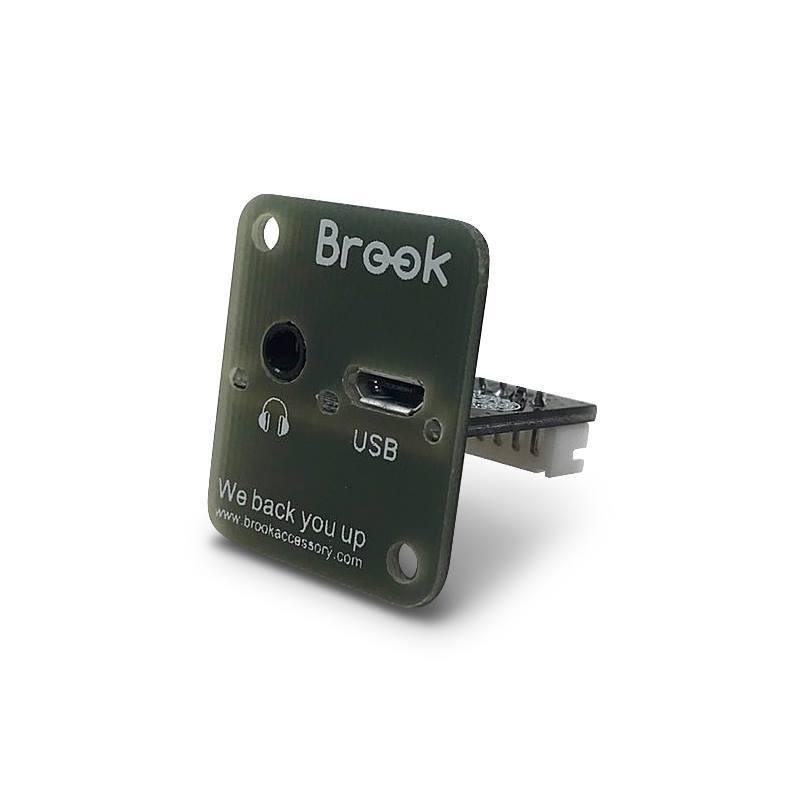

Besides the difference in cost, the PS3 / PS4 Fighting Board adds a break out PCB that houses a micro USB and headphone jack with support audio for the PS4 portion.


Features


PS4, PS3 and PC control
Firmware upgradeable system via USB connection.
No 8 minute timeout reset needed.
XINPUT Mode (when applicable).
Two Analog stick Support
SOCD Cleaner support via pin connector (J15).
Screw terminal for solderless connections.
20 pin (2x10) housing for future expansion or connection to other PCBA.
Other pin headers available for VCC, player 1-4 LEDs, RS, DP and LS mode, touch pad, touch pad button, Turbo button, and alternative USB output connector.
Similar form factor to Brook Universal Fighting Board with Headers makes installation familiar to most joystick builders.
